CPP Square Pattern Film(Embossing) – Keyful CPP-SP

•Made from a single-material polypropylene using a biaxial stretching process.

•Printability: Stable surface tension. Compatible with Flexo, Gravure, Offset, Screen, and UV printing. Supports premium hot foil stamping to deliver a sophisticated, high-end aesthetic.

•Functionality: Inherent anti-static properties and excellent resistance to oils and grease，abrasion resistance.

•Visual effects: clear and vivid surface textures; embossing processes create various patterns on the surface, enhancing packaging aesthetics and premium feel.

Keyful CPP-SP integrates a “geometric checkered texture + 3D emboss” into a single-material CPP structure. The checkered pattern is clear and striking, providing a more premium tactile feel. Combined with stable surface tension, it supports printing processes such as Flexo/Gravure/Offset/UV, and supports hot stamping and hot foil to enhance visual depth. With anti-static, oil and stain resistance, and abrasion resistance, it readily supports batch customization, enhancing product differentiation and stability in gift boxes, labels, and flexible packaging.

We focus on the research & development, production, manufacturing, and supply of various flexible, environmentally friendly, and biodegradable packaging films, covering BOPP, BOPET, BOPA, PE, and recyclable single-material films, and are committed to meeting the diverse packaging solution needs of the market.

Keyful CPP-SP CPP Square Pattern Film is made from a single polypropylene (PP) material that has undergone biaxial stretching. This process creates a distinct square texture and a three-dimensional embossed appearance, making it ideal for enhancing the visual recognition and tactile experience of Square pattern CPP film.

Its stable surface tension ensures excellent compatibility with Flexo, Gravure, Offset, Screen, and UV printing. It can also accommodate premium hot foil stamping to create a more “high-end” geometric texture effect. The film possesses inherent antistatic properties and demonstrates good resistance to grease and oil stains, along with excellent abrasion resistance, fulfilling both the decorative and functional requirements of Square grid texture film.

Applications

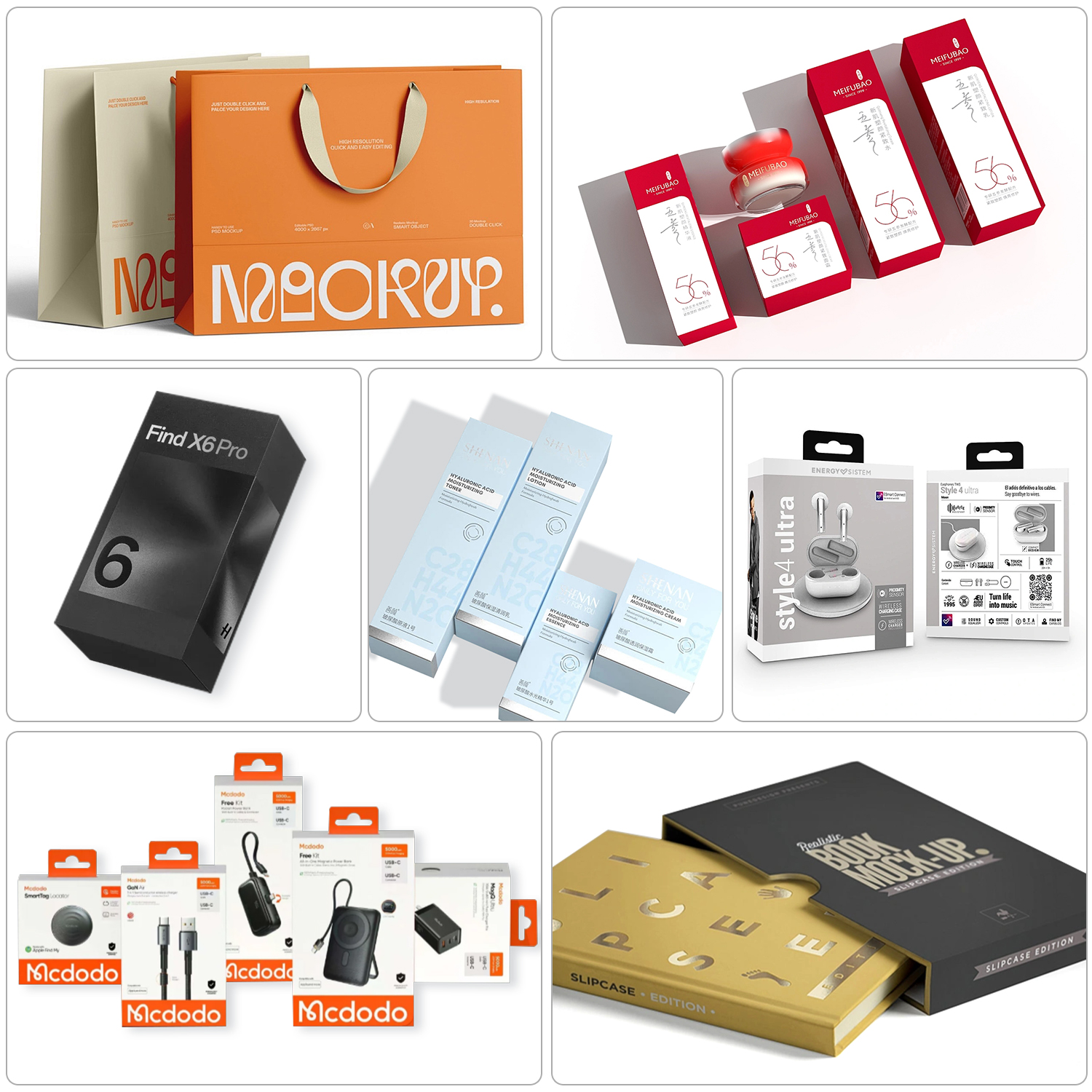

  • Paper-Plastic Lamination Industry: Lamination for luxury gift boxes, folding cartons, shopping bags, books, and various product packaging.

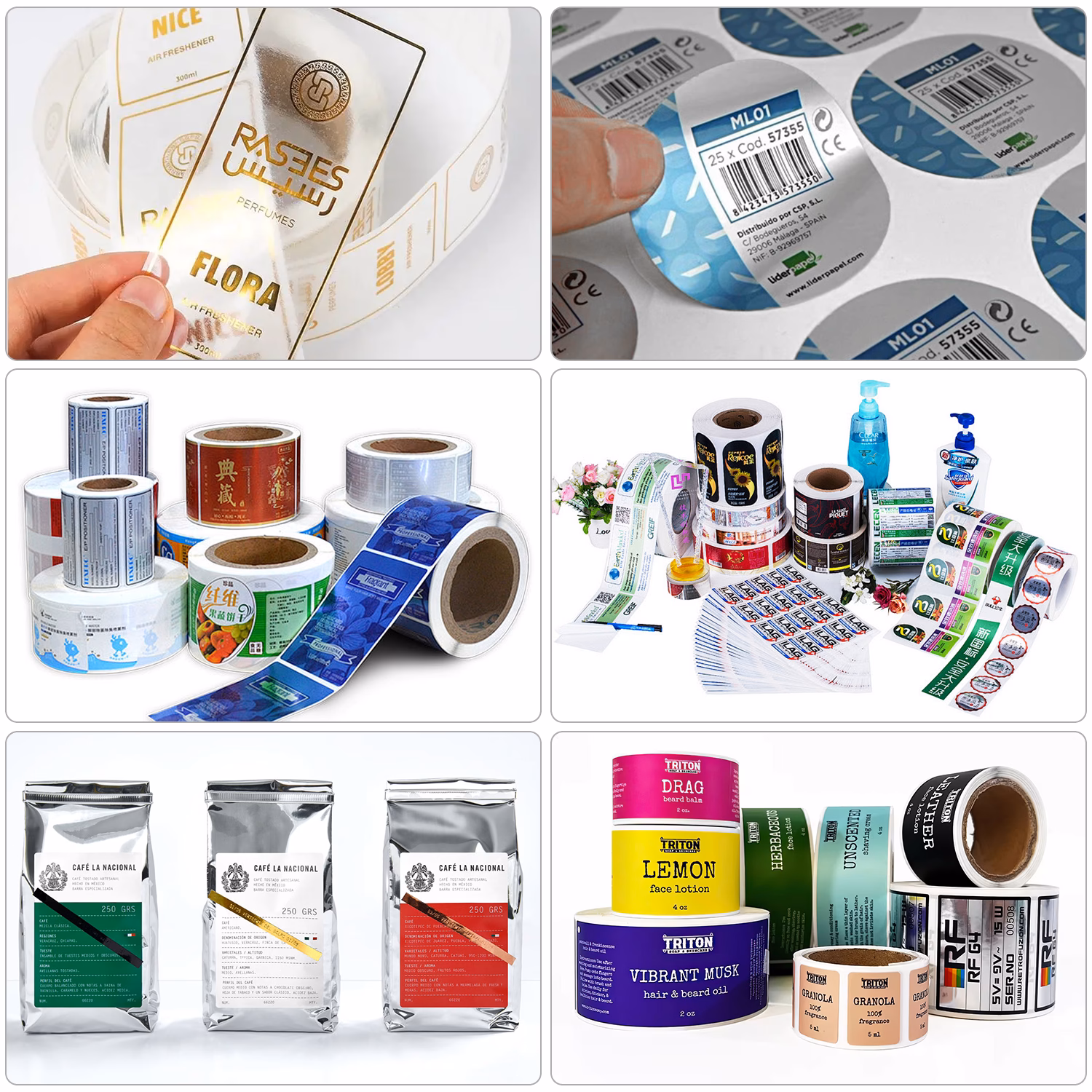

  • Label Industry: Printable labels, compatible with various adhesives, with customizable adhesion.

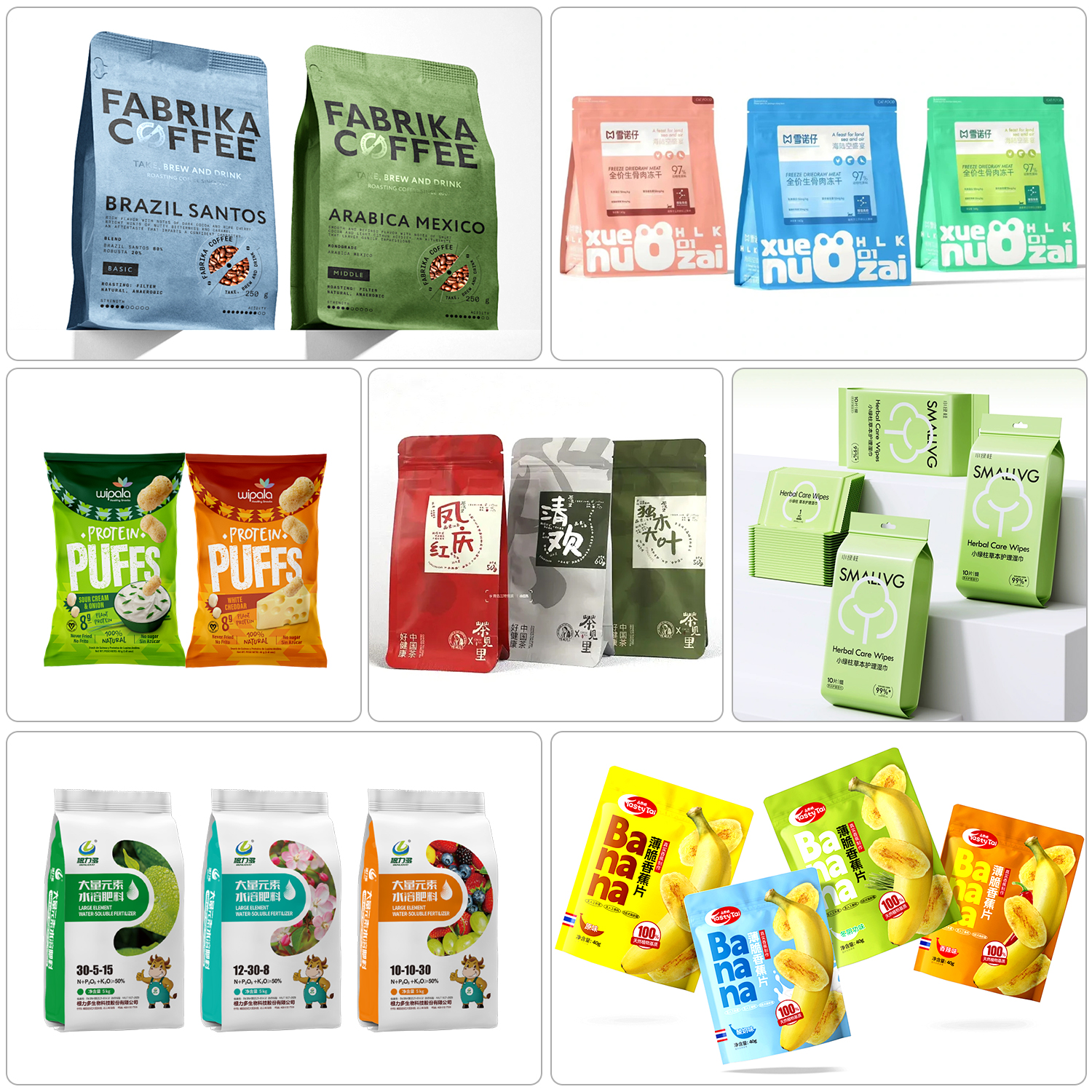

  • Flexible packaging industry: surface printing material for multi-pouch packaging.

Technical Properties (Typical Values)

Property Unit Result Test method
Thickness microns 80±2 DIN 53 370
Tensile strength MD/TD MN/m² 10 ASTM D 882
10
Elongation at break MD/TD % 420 ASTM D 882
380
Heat shrinkage MD/TD % 0.9 ASTM D1204 100°C / 10 min
0.5
Surface Wetting Tension
Laminated Side		 dyne/cm >32 GB/T 14216
Surface Wetting Tension
Non-Laminated Side		 dyne/cm >32 GB/T 14216
Optical: Gloss Haze (wide angle) GU 2~3 ASTM D2457 60°C

All properties are tested under standard laboratory conditions: 23±2ºC; 50±5% RH, unless otherwise stated. Where relevant, tests are based on international testing standards. Metallising is conducted by a sub-contractor. MD – Machine Direction TD – Transverse Direction.

    Name*

    Email*

    Phone

    Country

    Company Name

    Subject

    Message*

    * Required

    The texture is formed by the embossing process and structure of the film, providing a stable visual effect that is suitable for bulk packaging and continuation of the same series.

    It supports Flexo, Gravure, Offset, Screen, and UV printing. The stable surface wettability helps to enhance the layers and colors of the graphics.

    Premium hot foil stamping is possible; the embossed square structure, when overlaid with hot stamping, results in more pronounced light and shadow effects and a stronger visual impact.

    The film has natural anti-static properties and good resistance to oils/grease, as well as a degree of abrasion resistance, which facilitates transportation and repeated handling.

    It can be used for surface lamination in applications such as gift boxes, folding cartons, shopping bags, and books. For specific adhesive systems, it is recommended to conduct small-scale tests to confirm suitability based on the customer’s target peel strength/durability requirements.

    It can be used for printable labels and other applications and supports compatibility with various adhesives. If “custom adhesion” is required, matching recommendations can be provided based on the adhesive and usage scenario.

    It is suitable as a surface printing and decorative material for multi-pouch packaging. The geometric texture can enhance the overall recognition and texture.

    Customization is supported. The thickness, appearance texture strength, and process combinations can be tailored based on production line conditions and target effects (subject to actual confirmation).
